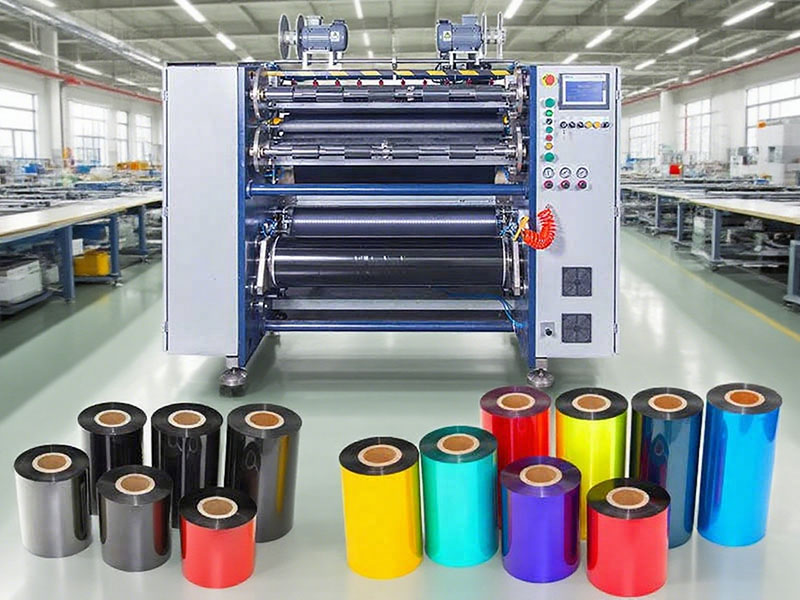

Automatic Thermal Transfer Ribbon Slitter Rewinder

Features

High-Precision Slitting – Uses magnetic blade holders or razor blades to achieve clean edges on thin films (typically 4–20 microns). Minimum slit widths can go down to 20–25 mm .
Automatic Tension Control – Servo motors (often 4 independent units) and PLC control (e.g., Siemens) maintain consistent web tension from unwind to rewind, preventing stretching or wrinkling .
Leader/Trailer Handling – Semi-automatic or fully automatic stations apply leader and trailer tape/film, reducing manual labor and material waste (ribbon-saving function) .
Turret Rewinding (High-End) – Fully automatic models feature a turret system that switches finished rolls without stopping the machine, boosting throughput for large-volume production .
Core Compatibility – Handles both 1-inch and 1/2-inch cores interchangeably, which is essential for serving different printer requirements .
Speed Range – Varies by model: entry-level/compact units run at 30–80 m/min; mid-range at 250–300 m/min; fully automatic high-speed lines reach 400–450 m/min .

Jumbo roll width	650mm~1050mm	Rewind turret	Automatic tumet and cut at rewinding
Jummbo roll diameter max	650mm	L/Tapplication table	Automatic Leader Table
Jumbo roll core dia	6 inch / 3 inch	Blade holder qty	25pcs
Max.speed	500m/min	Power	AC380V/220V,50~60Hz
Film thickness	4~20um	Motor power	13KW
Finished roll core	1 inch / 1/2 inch	Air power	0.6~0.8MPa
Finished roll dia	135mm	Dimension	310024001700(mm)

Description

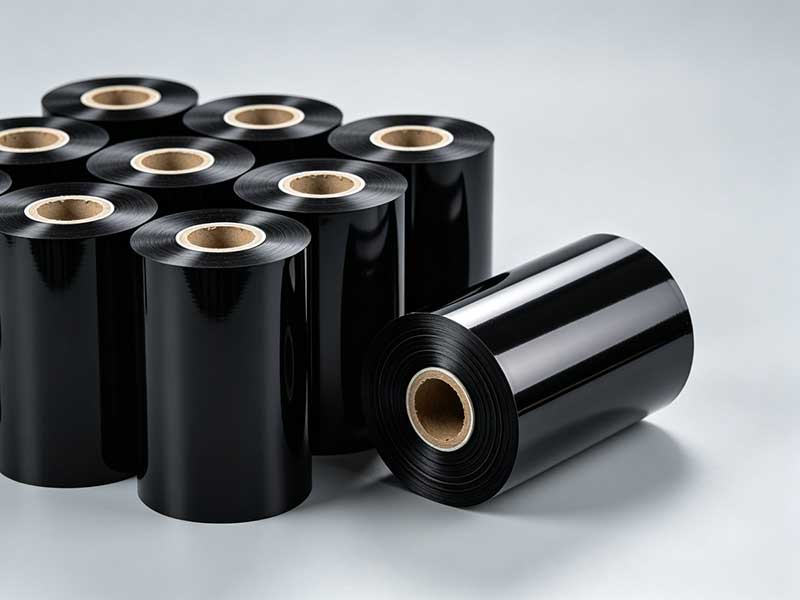

The Automatic Thermal Transfer Ribbon (TTR) Slitter Rewinder is a precision machine designed to slit jumbo rolls of thermal transfer ribbon into narrow, printer-ready rolls. It is widely used for processing wax, wax-resin, and resin-based ribbons, as well as hot stamping foils and other thin films typically ranging from 4 to 20 microns in thickness.
