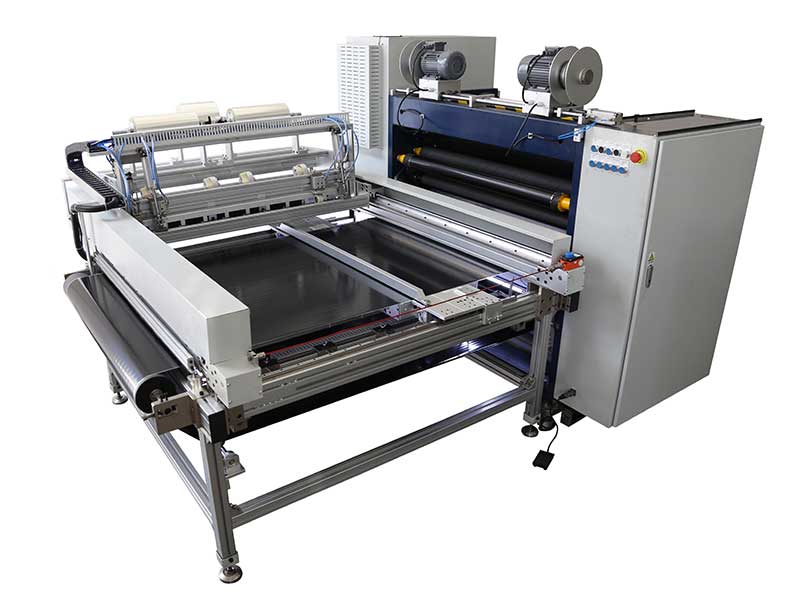

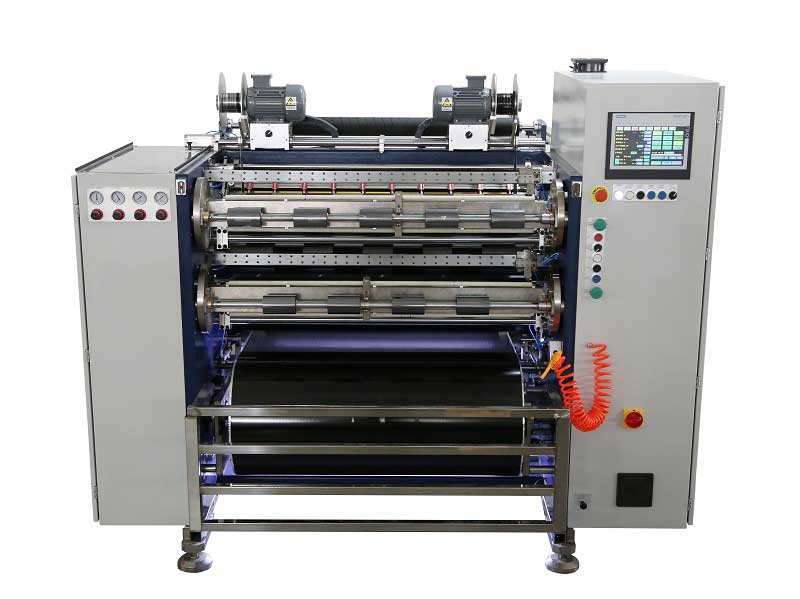

Automatic Thermal Transfer Ribbon Slitting Machine RSDS8 PLUS

Features

The use of advanced mechanical structure and control system can achieve high-speed, continuous slitting operation and improve production efficiency.
Through the precision tool and control system, the slitting accuracy is ensured and the material waste is reduced.
It is equipped with functions such as automatic unwinding, automatic slitting, and automatic winding to reduce manual intervention and improve the level of production automation.
Support different widths, different materials of thermal transfer ribbon slitting, to meet the production needs of different users.
The modular design is convenient for the maintenance and maintenance of the equipment.

Optional features

Slitting by Disc knife
Wave-slitting
Remote diagnosis,remote upgrade
PAXAR winding shaft
Razor blades & round Disc knife design

Jumbo roll width	650mm~1050mm	Rewind turret	Automatic tumet and cut at rewinding
Jummbo roll diameter max	650mm	L/Tapplication table	Automatic Leader Table
Jumbo roll core dia	6 inch / 3 inch	Blade holder qty	25pcs
Max.speed	500m/min	Power	AC380V/220V,50~60Hz
Film thickness	4~20um	Motor power	13KW
Finished roll core	1 inch / 1/2 inch	Air power	0.6~0.8MPa
Finished roll dia	135mm	Dimension	310024001700(mm)

Description

The thermal transfer ribbon slitting machine slits the wide thermal transfer ribbon material into a narrow ribbon that meets the user's needs through a specific mechanical structure and control system. Widely used in packaging, clothing, luggage, household goods and other industries, it is one of the indispensable equipment in thermal transfer technology. It can meet the printing needs of different sizes and materials, improve production efficiency and reduce production costs.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
