Barcode Ribbon Slitter Rewinder

Features

High-Precision Slitting – Uses magnetic blade holders or razor blades to achieve clean edges on thin films (typically 4–20 microns). Minimum slit widths can go down to 20–25 mm .
Automatic Tension Control – Servo motors (often 4 independent units) and PLC control (e.g., Siemens) maintain consistent web tension from unwind to rewind, preventing stretching or wrinkling .
Leader/Trailer Handling – Semi-automatic or fully automatic stations apply leader and trailer tape/film, reducing manual labor and material waste (ribbon-saving function) .
Turret Rewinding (High-End) – Fully automatic models feature a turret system that switches finished rolls without stopping the machine, boosting throughput for large-volume production .
Core Compatibility – Handles both 1-inch and 1/2-inch cores interchangeably, which is essential for serving different printer requirements .
Speed Range – Varies by model: entry-level/compact units run at 30–80 m/min; mid-range at 250–300 m/min; fully automatic high-speed lines reach 400–450 m/min .

Jumbo roll width	650mm~1050mm	Rewind turret	Automatic tumet and cut at rewinding
Jummbo roll diameter max	650mm	L/Tapplication table	Automatic Leader Table
Jumbo roll core dia	6 inch / 3 inch	Blade holder qty	25pcs
Max.speed	500m/min	Power	AC380V/220V,50~60Hz
Film thickness	4~20um	Motor power	13KW
Finished roll core	1 inch / 1/2 inch	Air power	0.6~0.8MPa
Finished roll dia	135mm	Dimension	310024001700(mm)

Description

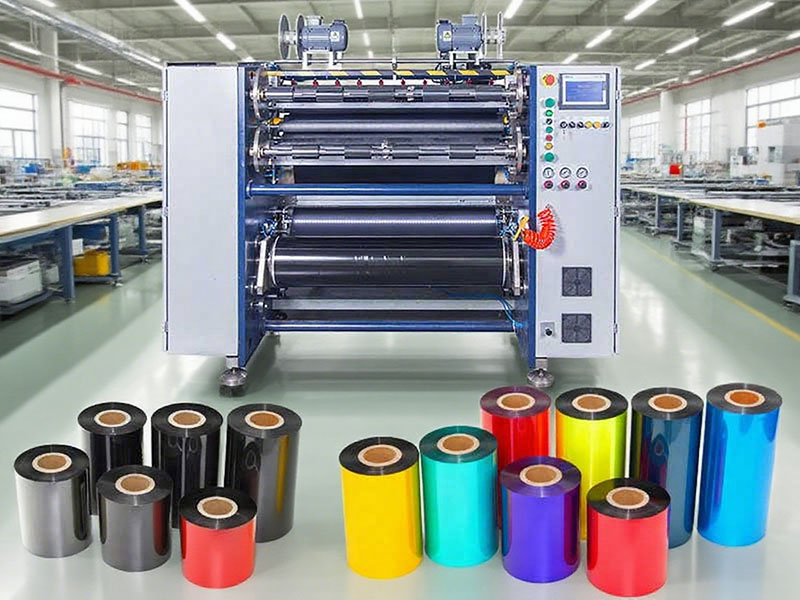

The Barcode Ribbon Slitter Rewinder is a specialized converting machine designed to slit wide master rolls of thermal transfer ribbon (TTR) into narrow finished rolls and rewind them into printer-ready spools. It is widely used in the label printing, packaging, and logistics industries to produce ribbon rolls in the exact widths and lengths required by various barcode printer models (e.g., Zebra, Honeywell, TSC).
